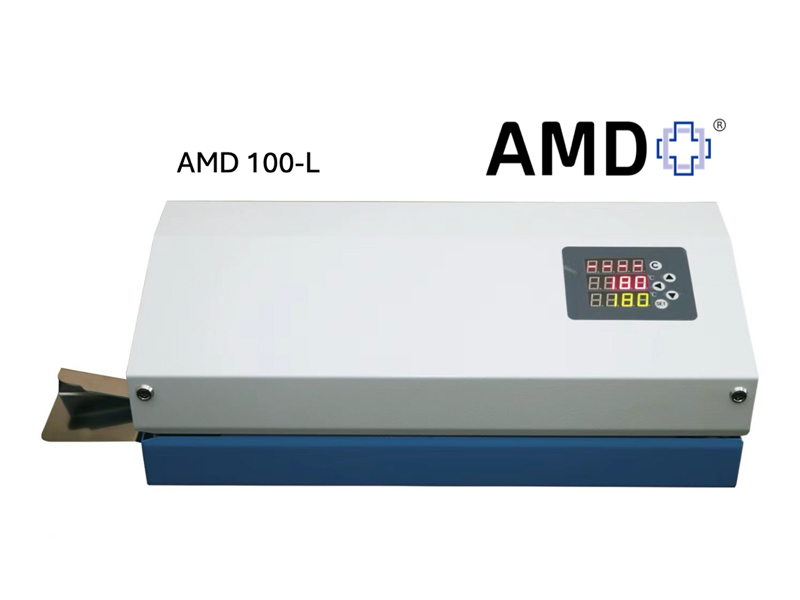

AMD Automatic Sealing Machine
Model AMD100-L
AMD Automatic Sealing Machine is a more sufficient way to choice when you are working with Sterilization Roll or Pouch.
Main Features
● Equipped with multiple automatic control functions, enabling continuous sealing operation. Temperature control accuracy reaches ±1%, with adjustable working temperature from 60–220°C, meeting most basic sealing requirements. It is an upgraded replacement for manual sealing machines and belongs to an economical sealing device category.
● Fast heating design: heating from room temperature to 180°C takes only 40 seconds.
● Floating constant-pressure compression system design, suitable for sealing plastic bags, paper-film gusseted pouches, and paper bags.
● Advanced flat ceramic heating element with dry-burn protection, high temperature resistance, long service life, and high thermal efficiency.
|
Technical Parameters |
|
|
* Sealing Speed: 10 m/min, with automatic paper feeding sensor control * Power Supply: 220V, 50Hz * Sealing Width: 12 mm * Output Power: 500 W * Seal Strength complies with YY/T 0698.5-2009 requirements |
* Machine Dimensions (excluding paper guide tray): 490 × 240 × 130 mm * Adjustable Seal Margin: 0–35 mm * Carton Dimensions: 600 × 375 × 270 mm * Net Weight: 10.8 kg * Gross Weight: 13 kg
|
