    AMD Automatic Sealing Machine AMD 101-CR

    AMD Automatic Sealing machine, with Printing function

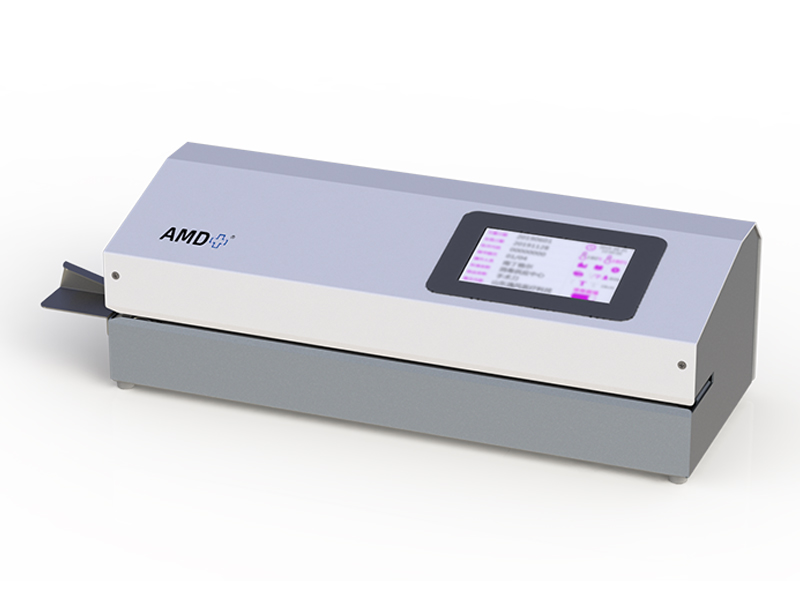

    The Automatic Sealing machine AMD 101-CR is a high-performance automatic sealing machine designed for medical and laboratory use, offering both consistent sealing quality and integrated printing functionality. Built for efficiency and reliability, this model is ideal for sealing sterilization pouches and reels in environments where speed, precision, and traceability are essential.

    PREV：AMD Manual Sealing Machine AMD 007NEXT：AMD Automatic Sealing Machine AMD100-L
    01Specification 02Inquiry

    Automatic Sealing Machine AMD 101-CR  Main Features

    - 7"' colorful capacitive touch screen, with Android OS graphical user interface, and adjustable parameters and automatic storage.

    - Operation parameters and print content can be adjusted without computer connection. A scanner is optional.

    - Adjustable fixed-force system meets the needs for scaling 3D and common paper-plastic pouches of any thickness. Native OQ function is available.

    Automatic Sealing Machine AMD 101-CR  Printing System

    -Medical device labels, marks and such information as the sterilization date, expiry date, LOT No., operator, department, Sterilizer No. and batch No. can be printed.

    - An in-built printer: font width and space are adjustable. Multiple fonts (narrow, normal and wide) are optional. Print function can be switched on or off.

    - It automatically provides suggested printing width value and estimates minimum pouch width to meet the printing requirement.

    Technical Parameters

    - Sealing Speed: 10±0.5m/min

    - Sealing Width: 12mm

    - Sealing Margin: 0-35mm adjustable

    - Work Temperature: 60-220°C

    - Temperature control accuracy: ≤±1%

    - Power: 500W

    - Max. Current: 3.2A

    Machines Specification:

    Dimensions: 42.6 x 20.6 x 12.5 cm

    Packaging: 82 x 37 x 36 cm

    Gross Weight: 22.5 KG

    Key Application Areas:
    Hospitals & CSSDs:
    For sealing sterilization pouches with printed tracking info—ensuring compliance and safety.

    Dental & Clinics:
    Easy-to-use solution for quick, hygienic tool packaging in small medical setups.

    Laboratories:
    Secures lab tools and materials in sealed pouches, preventing contamination.

    Pharma & Device Packaging:
    Supports traceable, GMP-compliant sealing for production and sterilization workflows.

    Sterilization Service Providers:
    Ideal for bulk sealing with built-in data printing, enhancing efficiency and accuracy.
